Technical Overview
Width of the appliance
603 mm
Number of Bottles (0.75 l)
99
Airborne acoustical noise emissions
42 dB(A) re 1pW
Range of temperature (°C)
5-20 °C
Noise level class
D
Home Connect
Yes
Highlights
Special Features
Three independent climate zones from 5° to 20°
Humidity control
Vibration control
High-quality interior for optimum wine presentation
Five preset lighting scenarios
Specifications
Capacity 99 bottles
3 independently controllable climate zones
Consistent temperatures with exact control from +5 °C to +20 °C
Humidity control
Stainless steel interior
Fully extendable bottle trays in oak wood and solid aluminium in anthracite
Bottle trays with hidden telescopic rails
2 brilliant LED light spots with warm white, glare-free light (3500 K) in each climate zone.
5 preset lighting scenarios, selectable via TFT display
Opening assist for door with two options:
1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
Low-vibration operation
TFT touch display
TFT touch display operation.
Clear text display.
Dynamic cold air distribution.
Automatic defrosting with defrost water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
UV-protection.
Rest mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction alarm.
Noise level 42 dB (A) re 1 pW.
Total volume 370 litres.

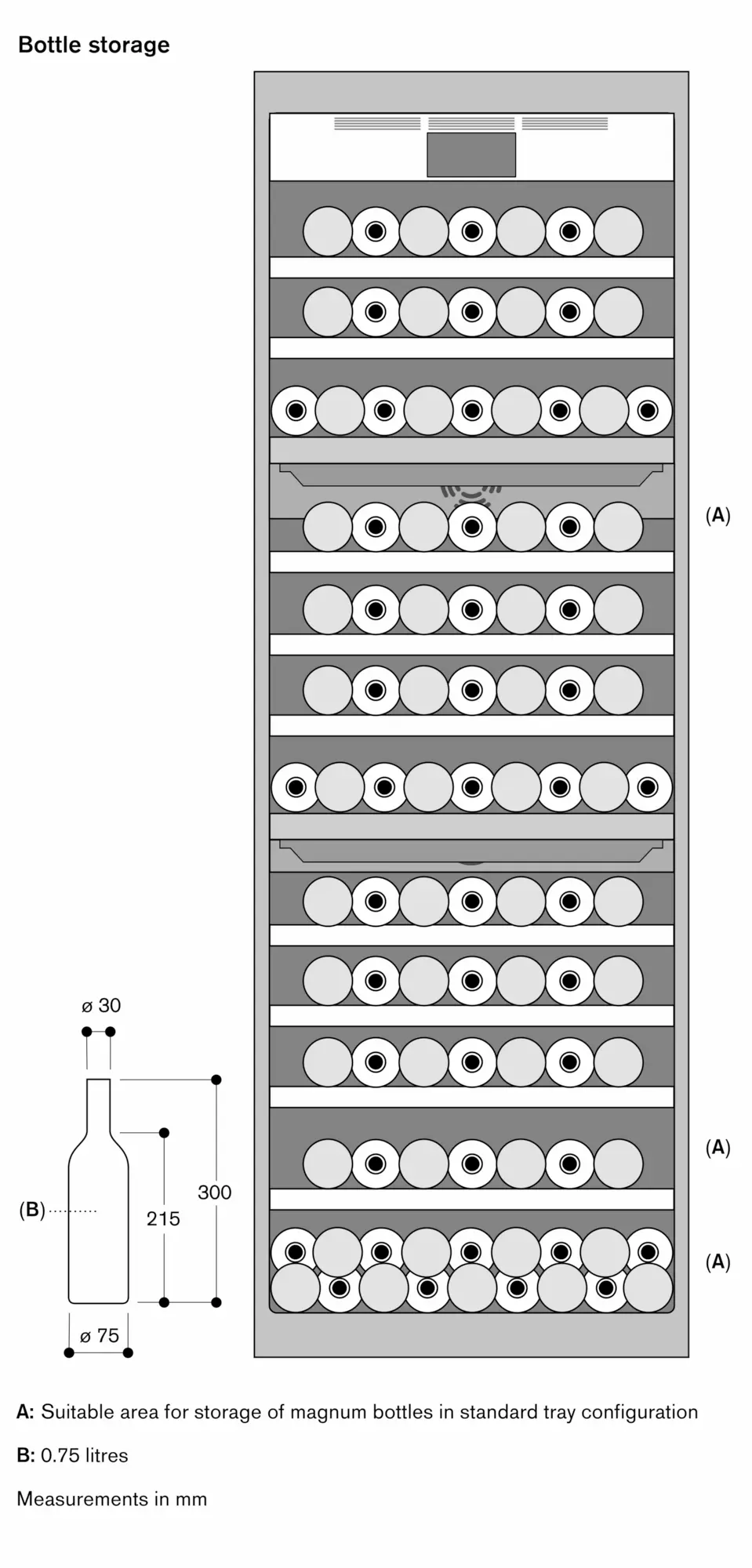

Capacity 99 bottles (based on 0.75l standard bottles).
12 bottle trays,
- 9 fully extendable trays - 3 suitable for storage of Magnum bottles.
Flexible interior configuration possible by adding or removing fully extendable bottle trays.
Storage of up to 12 Magnum bottles with standard tray configuration (12 bottle trays).
Space for max. 12 bottle trays.
5 different lighting scenarios can be selected for individual wine presentation.
Flat hinge.
Door hinge right, reversible.

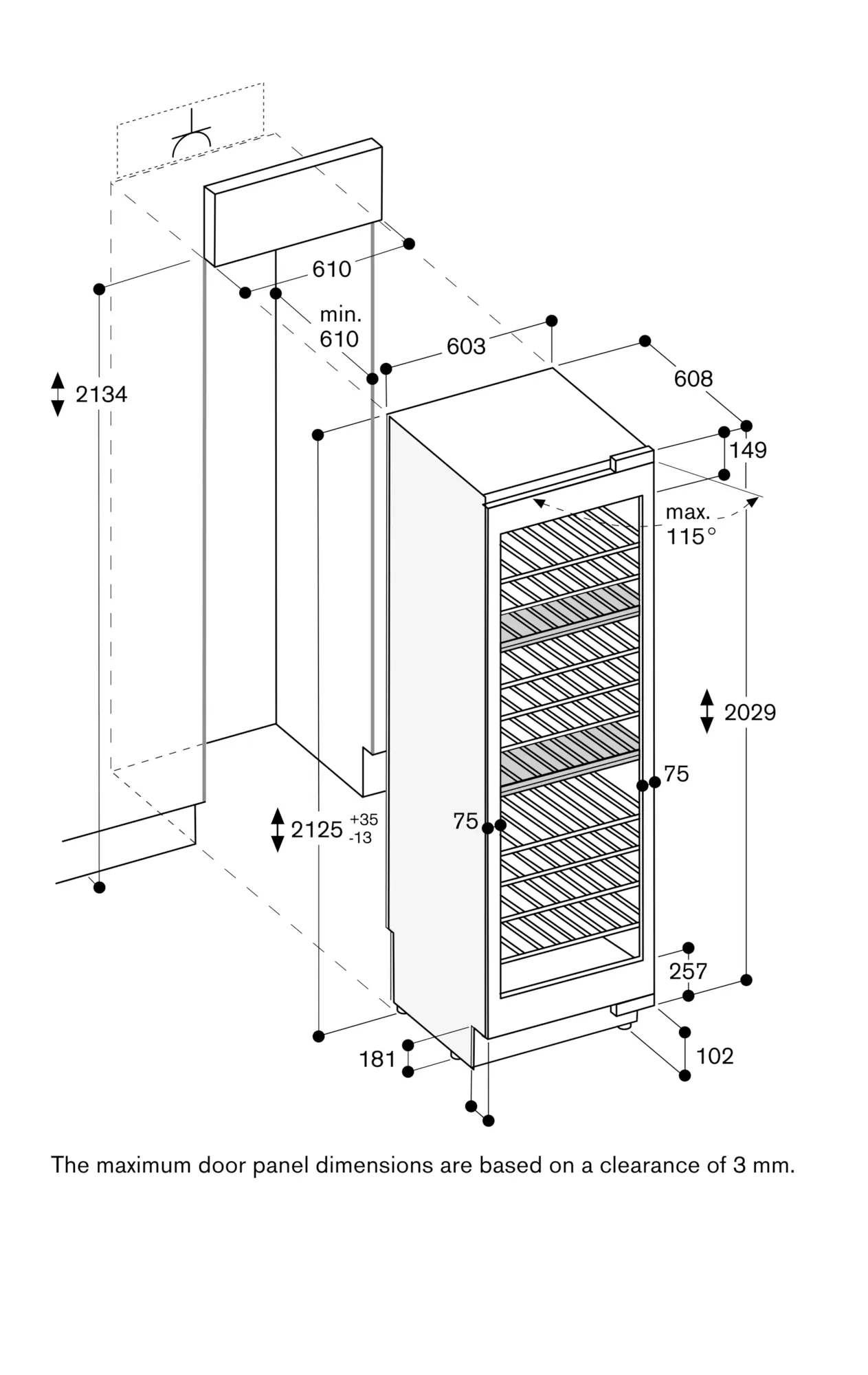

Door opening angle of 115°, fixable at 90°.
Max. door panel weight 73 kg.
The mains socket needs to be planned outside the built-in niche.
No transport/operation above 2000 m sea level.
Total connected load 0.300 KW.
Connecting cable 3.0 m, detachable.
