400 series Combi-steam oven 60 x 45 cm Door hinge: Left, Stainless steel behind glass

BS475112

Handleless door / automatic door opening

Cleaning system, fully automatic

Hot air 30 °C to 230 °C can be combined with chosen humidity level of 0%, 30%, 60%, 80% or 100%

Sous-vide cooking with accurate temperature regulation

Full surface grill behind glass ceramic, combinable with circulated air up to 230 °C and steam

Automatic programs

Fixed inlet and outlet water connection

TFT touch display

Panel-free appliance with surface control module

Electronic temperature control from 30 °C to 230 °C

Net volume 50 litres

Hot air + 100 % humidity.

Hot air + 80 % humidity. Hot air + 60 % humidity. Hot air + 30 % humidity. Hot air + 0 % humidity. Low temperature cooking. Sous-vide cooking. Full surface grill level 1 + humidity. Full surface grill level 2 + humidity. Full surface grill + circulated air. Dough proofing. Defrosting. Regenerating.

Automatic door opening.

Rotary knob and TFT touch display operation.

Clear text display.

Option to save individual recipes (incl. core temperature probe).

Personalisation of automatic programs.

Information key with use indicators.

Side-opening door opens up to 180° angle.

Full surface grill 2000 W behind glass ceramic.

Steam removal.

Misting.

Three-point core temperature probe with automatic shut-off and estimation of cooking time.

Hot air fan rotates in both directions for ideal heat distribution

Automatic programs.

Actual temperature display.

Automatic boiling point detection.

External steam generation

Steaming without pressure

Capacity display for filter cartridge (if connected to GF 111 100 descaling system).

2 x LED lights on the side.

Large cavity

Hygienic stainless steel cooking interior.

3 tray levels.

Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer (certified by Star-K).

Child lock.

Safety shut-off.

Cooled housing with temperature protection.

Cleaning program, fully automatic.

Descaling program for the steam generator.

Drying program.

Automatic drying of the cavity at the end of the cooking process.

Strainer filter, removable.

Special accessories (order as spare parts):

part no. 17002490 Descaling tablets

Door hinge not reversible.

No other electrical appliances should be installed above the BS.

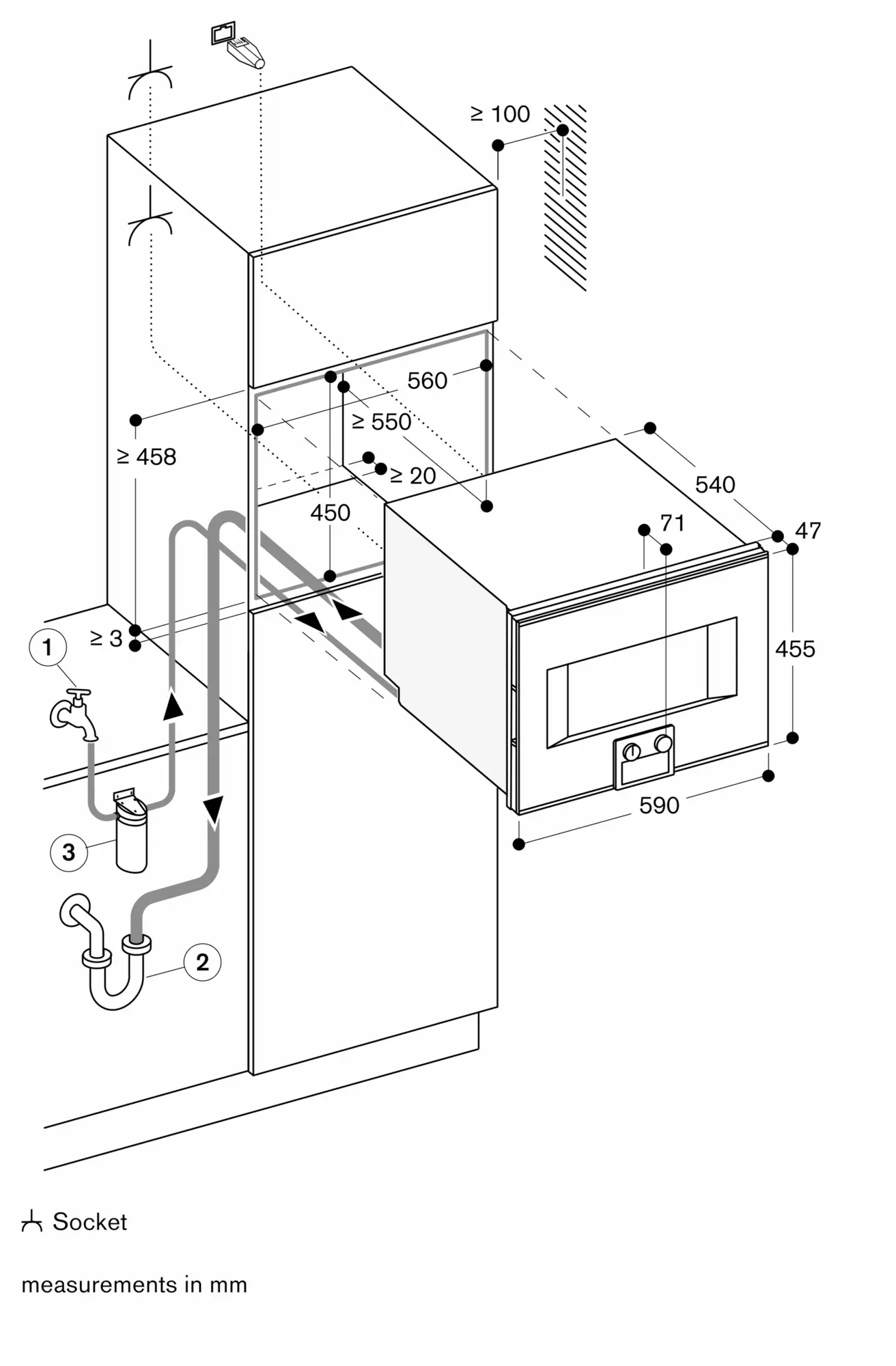

At no point may the outlet hose be positioned higher than the bottom edge of the appliance. The outlet hose must also be at least 100 mm lower than the appliance outlet (see drawing "drainage connection").

Inlet hose can be extended once.

The outlet hose must not be longer than a maximum of 5 m.

The water connection (1) for the inlet hose must always be accessible and not located directly behind the appliance.

The connection of the outlet hose to the siphon (2) must not be directly behind the appliance and should be accessible.

The descaling system GF 111 100 (3) must be installed when connecting the appliance if the water hardness exceeds 7° dH.

The door panel surface of the appliance extends 47 mm from the furniture cavity.

Consider the overhang when planning to open drawers next to the appliance.

When planning a corner solution, pay attention to the 90° door opening angle.

The mains socket needs to be planned outside the built-in niche.

Total connected load 3.1 KW.

Only cold water connection.

Inlet hose 3.0 m with connection pipe thread ISO228-G 3/4'' (Ø 26.4 mm), extendable.

Outlet hose (Ø 25 mm) 3.0 m (HT-Hose).

Connecting cable 1.8 m without plug.

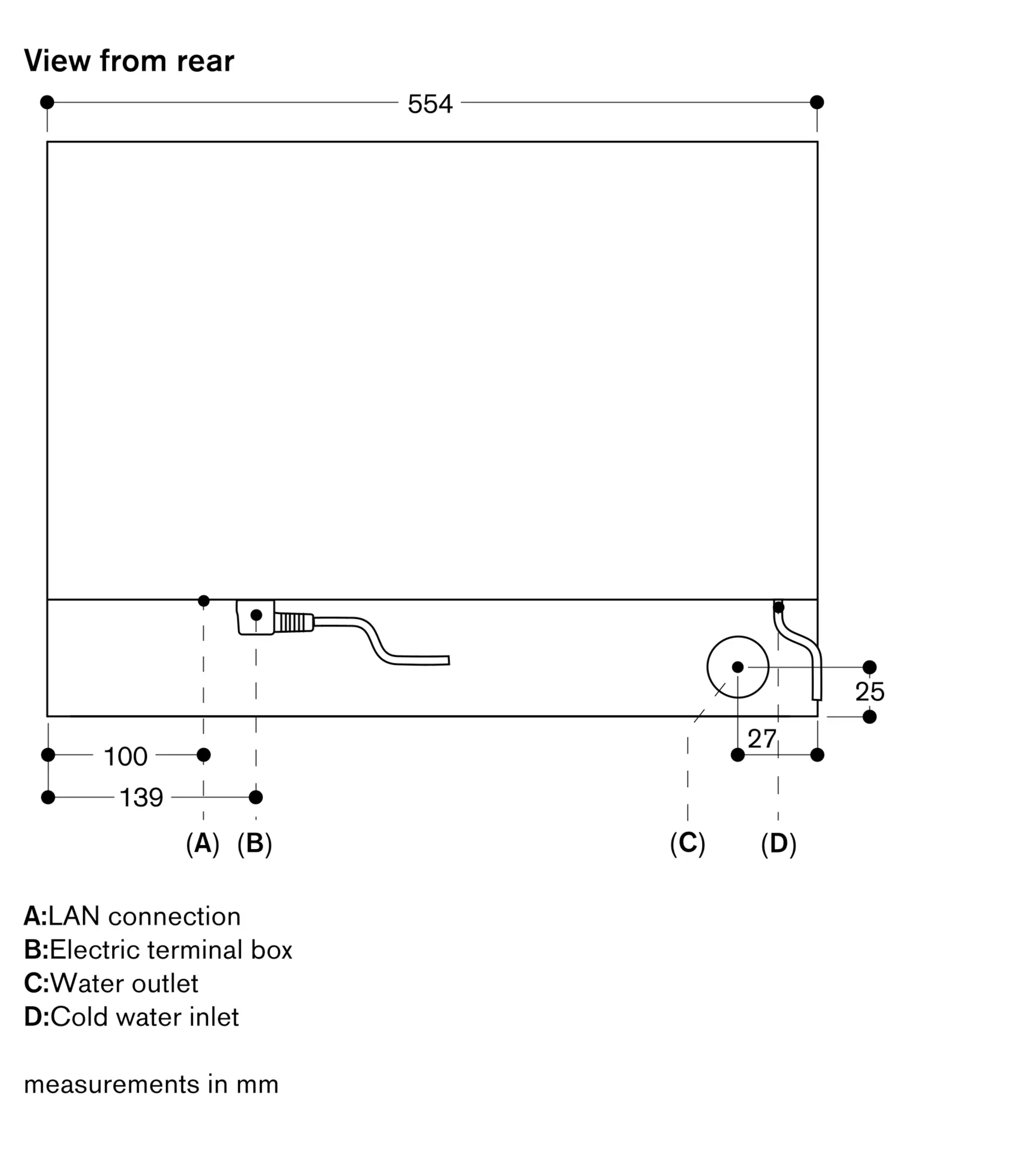

Plan a LAN cable.
