400 series Dishwasher 60 cm Variable hingeDF481500F
Replacement for
DF481562F
1 / 7
400 series Dishwasher 60 cm Variable hingeDF481500F
Replacement for
DF481562F
Find a local Dealer
Technical Overview
Width of the appliance
598 mm
Height of the appliance
865 mm
Energy Stars
4.0
aqua stop
Yes
brilliantShine System
No
Home Connect
Yes
Highlights
Special Features
Push-to-open function for perfect integration into handleless furniture fronts
8 programmes with aqua sensor and 4 options, such as Power for cleaning and drying dishes from 57 minutes and Intensive Plus for adjusting cleaning areas in the lower basket
Flexible basket system
Specifications
Optimal protection for sensitive glassware by low temperature drying with zeolite, elaborated basket design and intelligent water softening
8 programs with aqua sensor and 4 options, such as Power to reduce the cycle time and Intensive for particularly thorough cleaning in the lower basket
Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket
Perfectly illuminated interior
Push-to-open function for perfect integration into handleless furniture fronts
Flexible hinge for reduced plinth height as of 50 mm
Lateral Info-Light
Very quiet: 43 dB
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Flexible cycle time reduction, even during an active cycle.
Personalisation function for saving individual combinations of programs.
Temporary noise reduction (only available with active Home Connect functionality).
Information key with use indicators.
Time delay up to 24 hours.
Visual and acoustic end of program indicator.
Lateral Info-Light.
Perfectly illuminated interior.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
hydryoDry heat exchanger assists with condensation to help dry dishes
Continuous flow heater.
Triple filter system.
Soft lock.
Aqua stop.
6 programmes:
Auto 35 °C - 45 °C. Auto 45 °C - 65 °C. Auto 65 °C - 75 °C. Eco 50 °C. Quick wash 45 °C (35 min.). Personalisation function (default setting: Pre-rinse).
4 options:
Intensive. Power. Hygiene. Extra Dry.
Machine Care.
Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket.
Cutlery drawer.
Upper basket:
Over extension. Optional extra cleaning area by activating additional spray nozzles. Rackmatic with 3 levels, adjustable in height up to 5 cm. 6 folding spines. 4 folding racks for optimal protection of glass.
Lower basket:
8 folding spines. 2 folding racks for optimal protection of glass. Dividable glass support.
Maximum dish sizes (upper/lower basket)
23/29, 20.5/31.5 or 18/34 cm respectively.
Cutlery basket.
Holder for long-stemmed glasses.
14 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
4 stars star energy rating, 5,0 stars star WELS water rating. AU WELS Registration Number: D02544
11.5 l water consumption per wash.
Annual energy consumption: 230 kWh.
Noise level 43 dB (re 1 pW).
Height-adjustable feet.

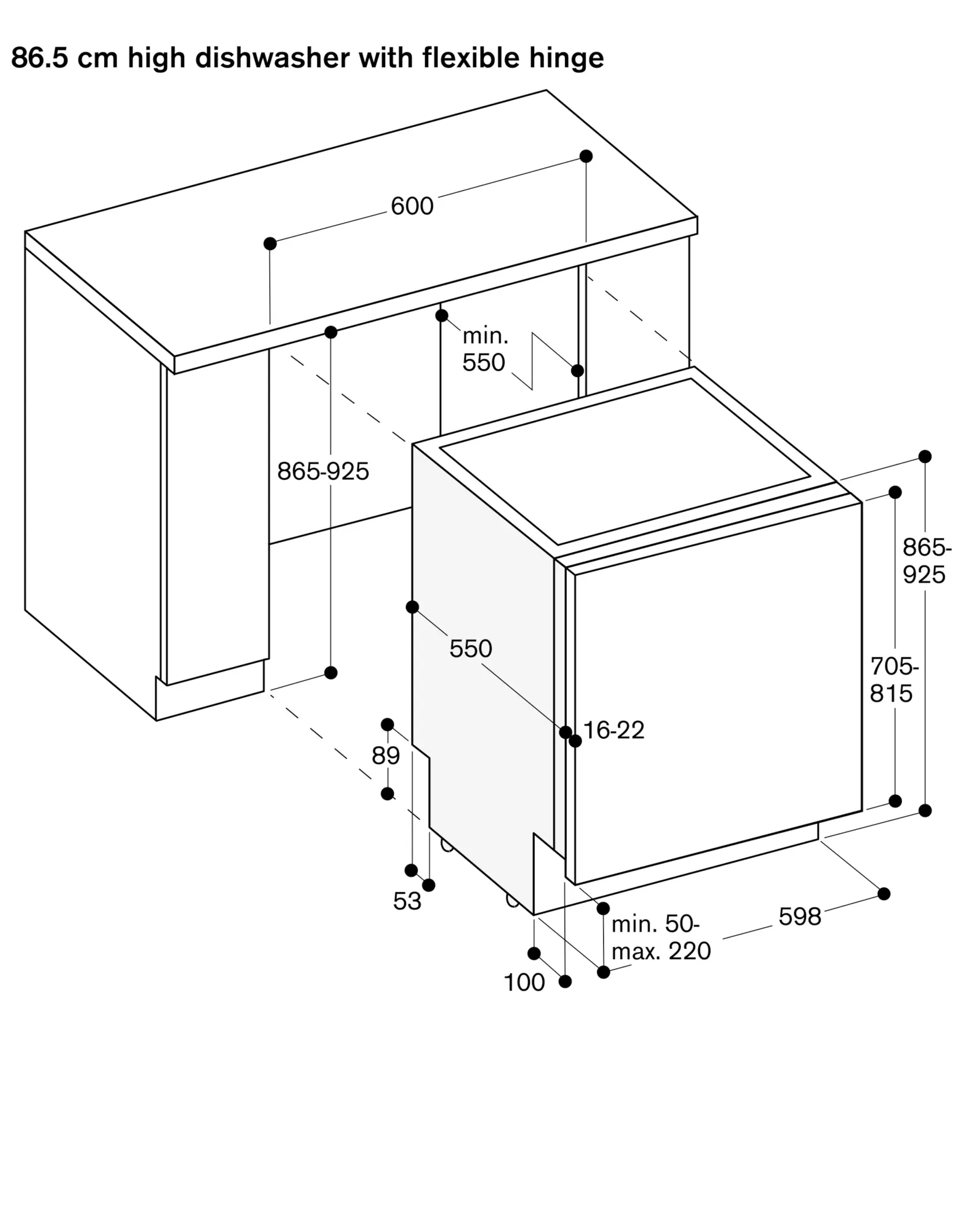

Appliance plinth recess 100 mm (see drawing).
Rear feet adjustable at front.
Door weight up to 11 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also with furniture handle possible. The push-to-open function remains active.
Total connected load 2000-2400 W.
Connecting cable pluggable.
Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
Power consumption standby/network 2.0 W.
Time auto-standby/network 2 min.
