200 series Vario downdraft ventilation 15 cm BlackVL200120
Replacement for
VL041115
1 / 29
+ 14
200 series Vario downdraft ventilation 15 cm BlackVL200120
Replacement for
VL041115
Find a local Dealer
Technical Overview
Installation typology
Built-in
Width of appliance
15 cm
Main colour of product
Black
Sound power level extraction (max)
71 dB
Maximum output air extraction
550 m³/h
Type of extraction
air extraction / air recirculation
Home Connect
No
Highlights
Special Features
The power levels are regulated automatically
Highly efficient ventilation
Advanced interior performance
Motorless, can be combined with Gaggenau BLDC remote fan units

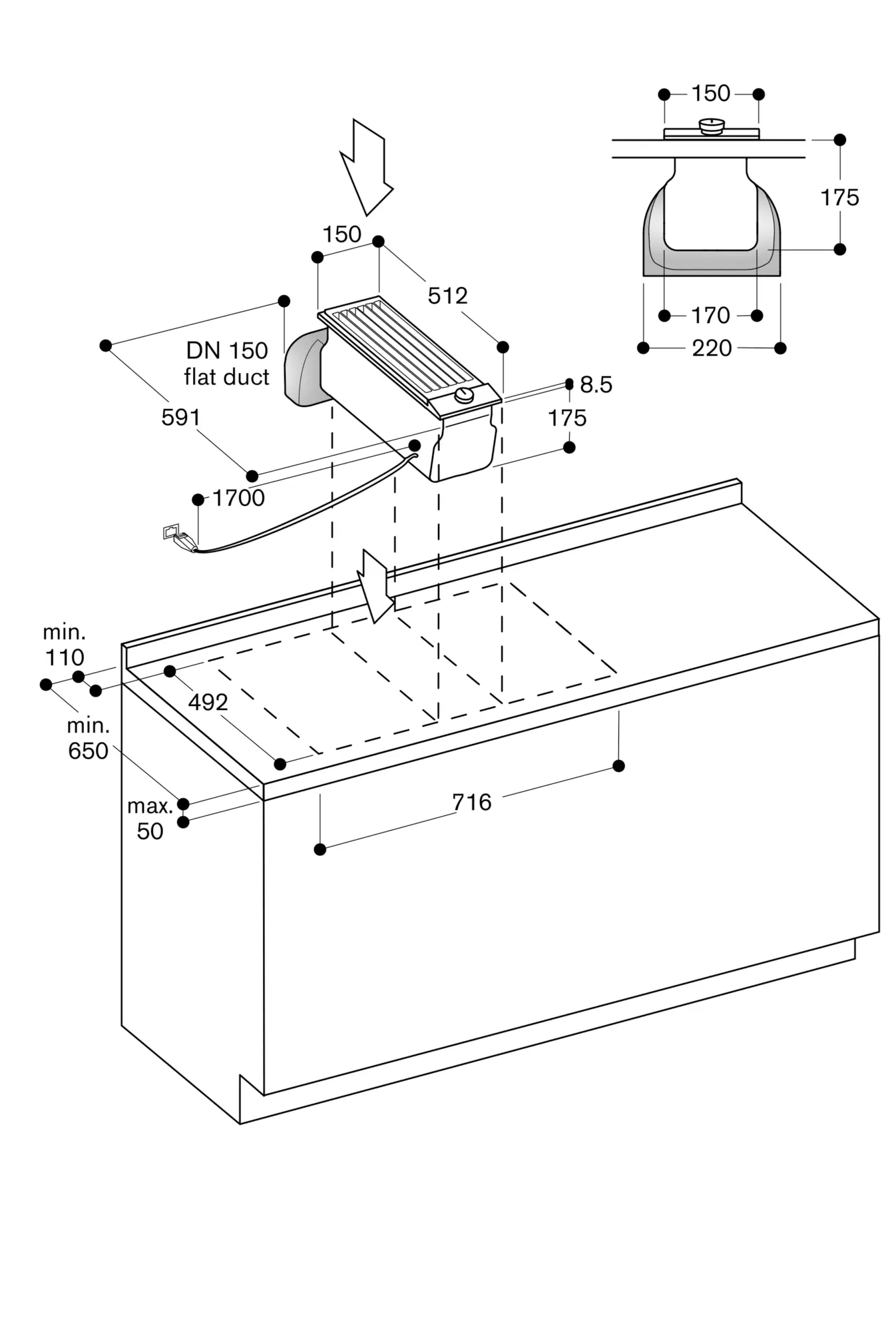

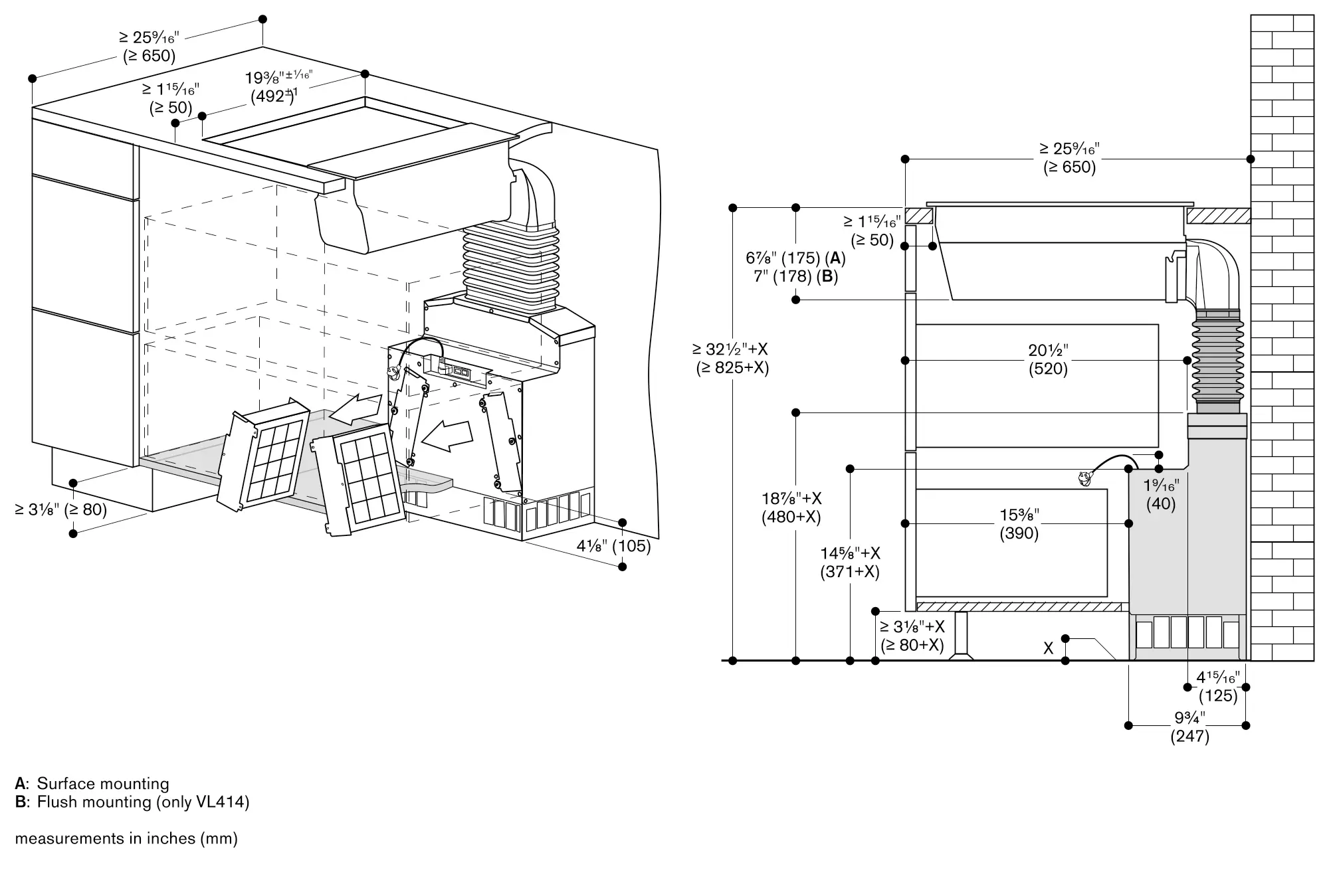

For surface installation with a visible edge or for flush installation
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Highly efficient ventilation system at the cooktop integrated in the worktop
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Minimal planning and easy installation

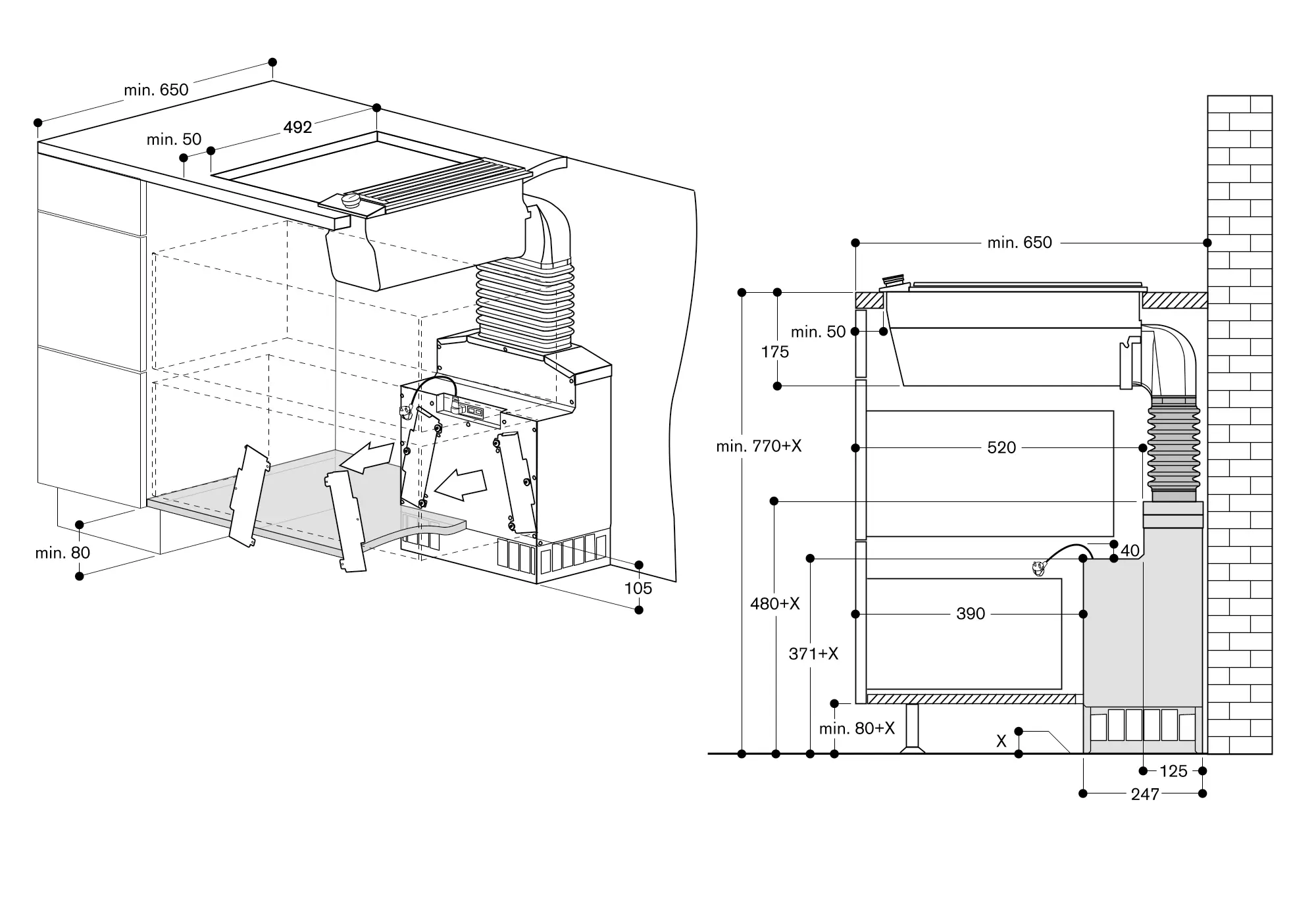

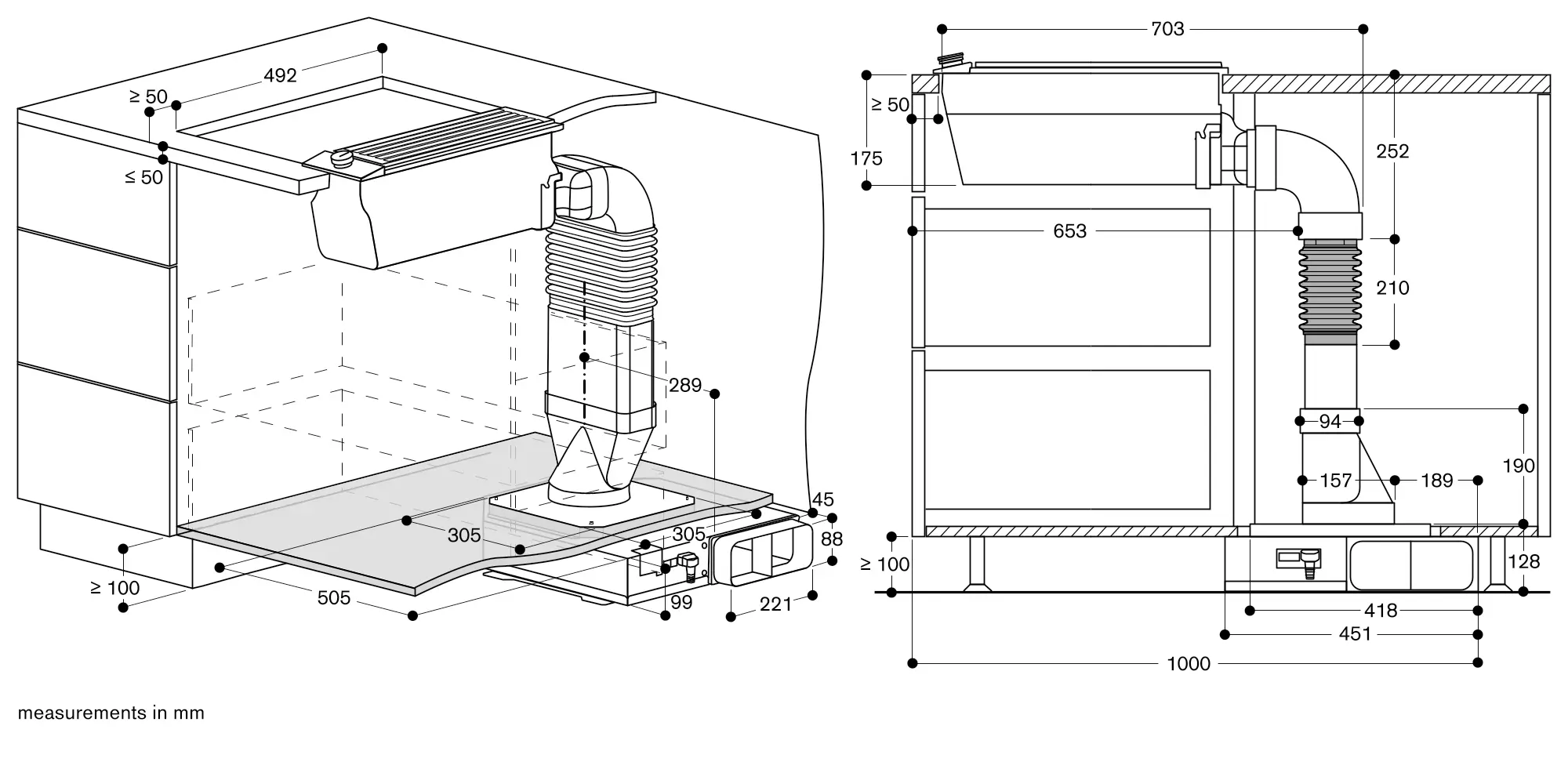

Air extraction or air recirculation system
Power levels depend on the remote fan unit.
Low-noise system with the motor AR 410 110
Control knobs with illuminated ring.
3 electronically controlled power levels and 1 intensive mode.
Automatic sensor-controlled or manual run-on function.
Large-scale metal grease filter with high grease absorption.
Removable, dishwasher-safe grease filter unit.
Grease filter and activated charcoal filter saturation indicator.
Airflow-optimised interior for efficient air circulation.
Interval ventilation, 6 min.
Enamelled ventilation grille, dishwasher-safe.

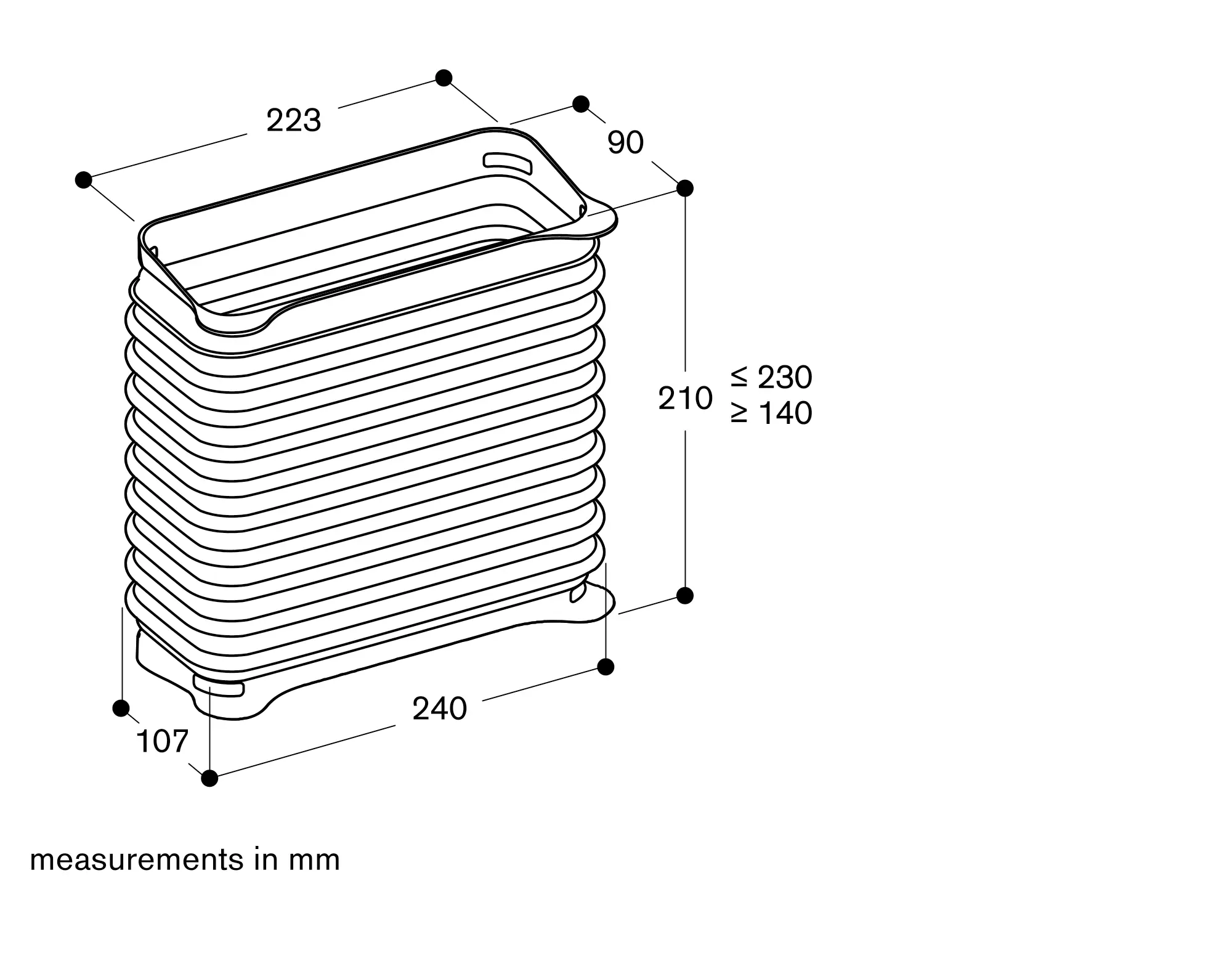

Air exhaust bend included in delivery.
Overflow 250 ml capacity.
Consumption data is referred to a configuration with the remote fan unit AR 403 122.
Energy consumption 48.3 kWh/year.
Sound level min. 56 dB / max. 71 dB normal mode.
For each VL one remote fan unit is recommended.
The equivalent ducting length to ensure good performance is Lmax 26 m.
For optimum performance in air recirculation we recommend an outflow surface area of at least 440 cm².
Air recirculation is not recommended in combination with Vario electric grill.
If installed next to gas appliances, the ventilation moulding LS 041 001 is recommended to ensure maximum performance of the cooktop.
Maximum cooktop width between two VL: 80 cm.
When having installed the ventilation moulding LS 041 001 the wok pan WP 400 001 can not be used.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Connecting cable 1.7 m between VL and remote fan unit.
