Technical Overview
Product name/family
Cooking zone ceramic
Type of control setting and signalling devices
TFT touch display, front
Number of gas burners
0
Number of cooking zones
1
FlameSelect
No
Gaggenau Home Connect
Yes
Specifications
One single large cooking surface
Free positioning of cookware
All sizes and formats of cookware can be used
TFT touch display for an intuitive control of all functions
Cooking sensor function for temperature control in pots
Professional cooking function
Max. power output for big cookware of up to 5.5 KW
Frameless for flush mounting
Up to 5 items of cookware can be placed simultaneously on the cooktop.
One unique cooking surface of 2750 cm².
Easy to use colour graphic TFT touch display with use indications.
Electronic power control in 17 output levels.
Cooking sensor function.
Professional cooking function.
Dynamic cooking function.
Teppan Yaki function.
Booster function for pots.
Booster function for pans.
Keep warm function.
Individual pot detection.
Cooking timer for each cooking position.
Stopwatch.
Short-term timer.
Information key with use indicators.
Power management.
Main switch.
Child lock.
Safety shut-off.
Pause function.
Appliance must be fixed from underneath.

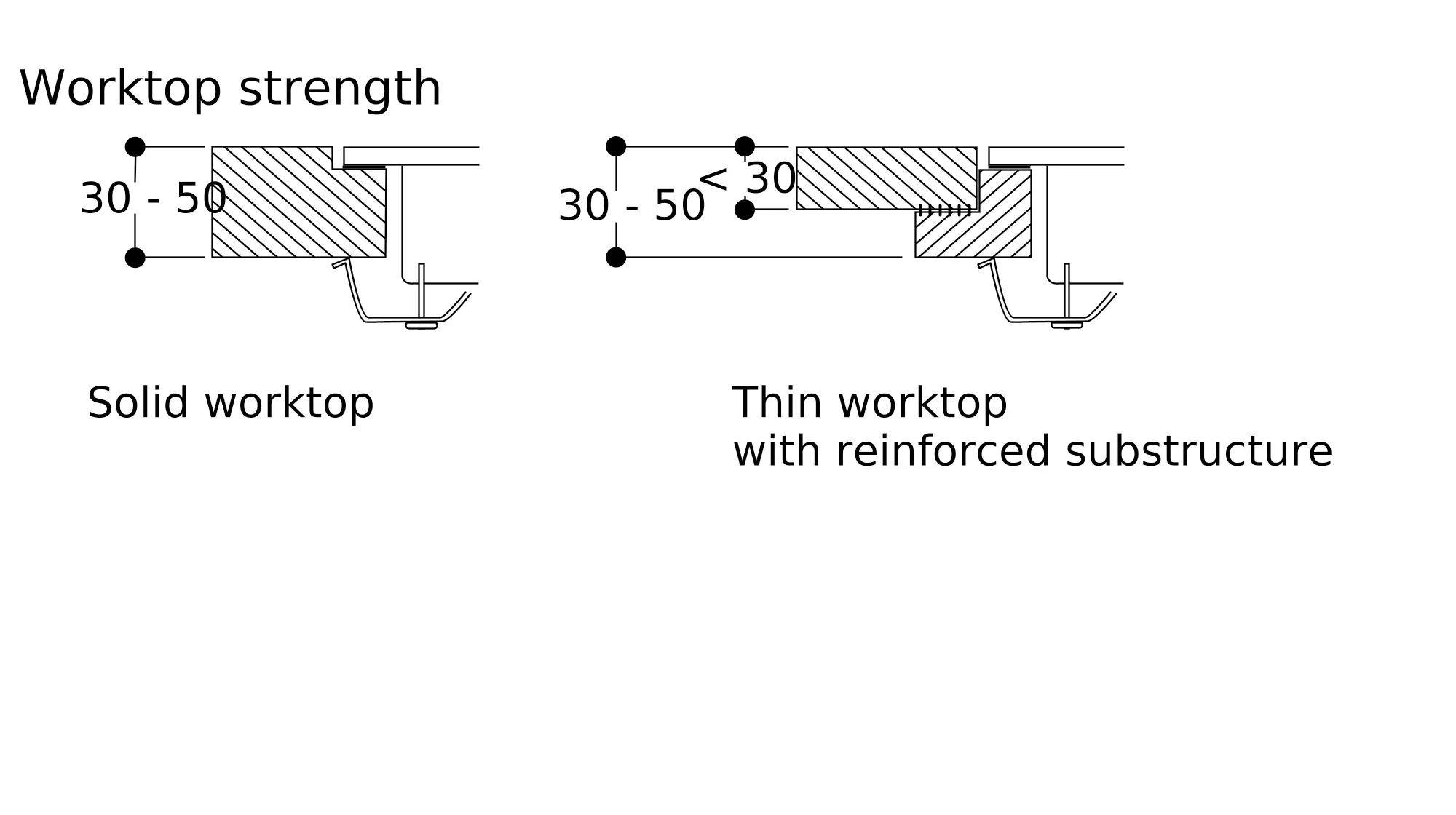

The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.

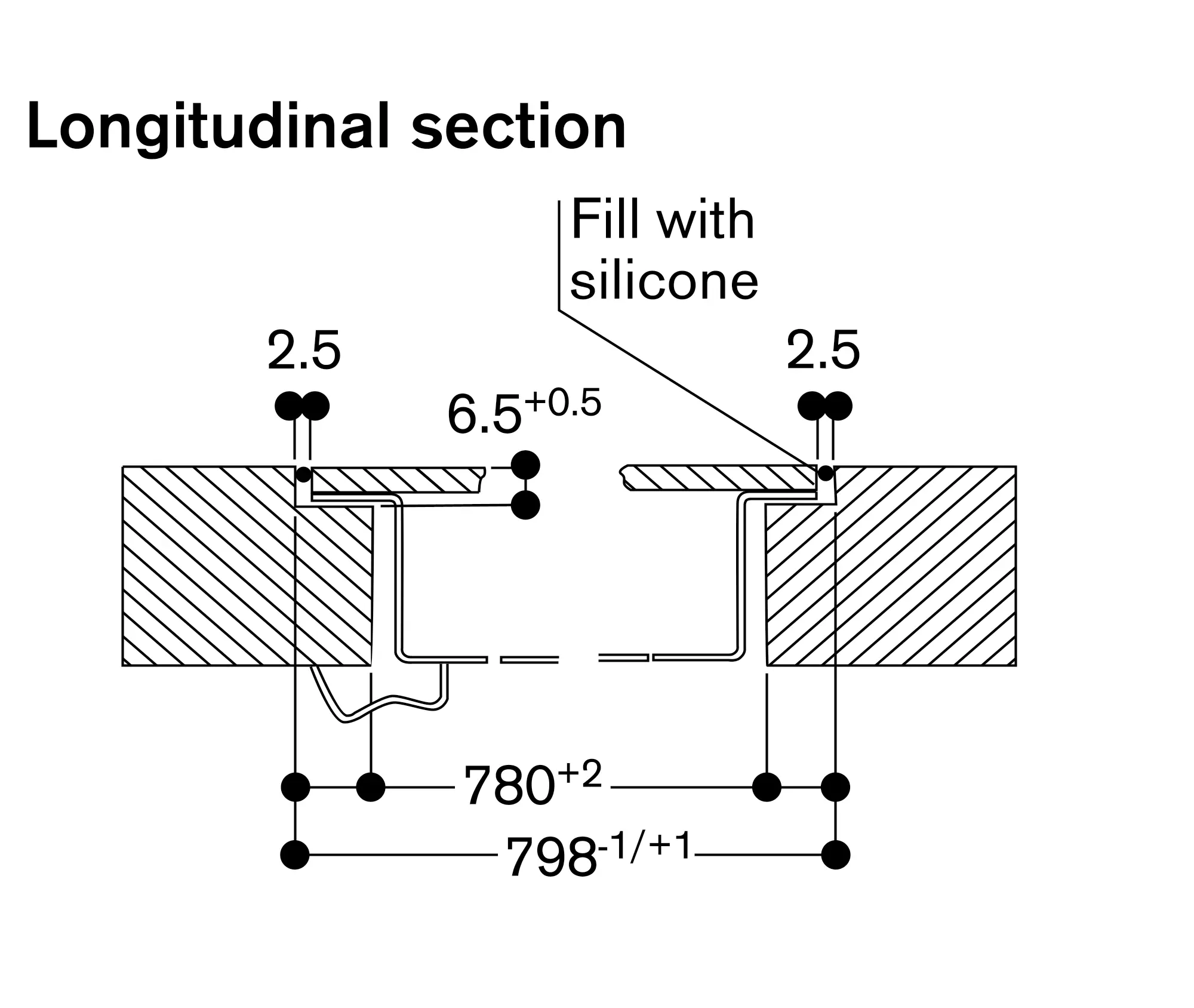

The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and the worktop cut-out.
Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
The wok pan WP 400 001 cannot be used with this appliance.
Appliance weight: approx. 27.
Total connected load 7.4 KW.
Connecting cable 1.5 m without plug.
Power consumption standby/display off 0.5 W.
