Classic Gaggenau design

Highly efficient extraction of cooking vapours

Energy-saving, low-noise fan

Patented filter technology with high grease absorption

Rim extraction filter with flat and easy-to-clean stainless steel underside

Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours

Dimmable, neutral white LED light for ideal illumination of the whole cooktop

Air extraction or air recirculation system

Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odour reduction in air extraction mode and long replacement intervals

Performance and noise level, output level 3/Intensive: Air output according to EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-2-13. Odour reduction for air recirculation in accordance with EN 61591.

Air extraction: 610 / 810 m³/h. 66 / 72 dB (A) re 1 pW. 52 / 58 dB (A) re 20 μPa.

Air recirculation: 450 / 530 m³/h. 70 / 74 dB (A) re 1 pW. 56 / 60 dB (A) re 20 μPa.

Odour reduction air recirculation 95%.

3 electronically controlled power levels and 1 intensive mode.

Automatic function with sensor-controlled run-on function.

Grease filter saturation indicator.

Patented rim extraction filter, dishwasher-safe.

Neutral white LED light (3600 K), continuously dimmable.

Lamp output 3 x 5 W.

Illuminance 731 lx.

Fan technology with highly efficient, brushless DC motor (BLDC).

Airflow-optimised interior for efficient air circulation.

Easy mounting system for simple installation and alignment.

The package includes an one-way flap.

Energy consumption 38.8 kWh/year.

Ventilation efficiency class A.

Ilumination efficiency class A.

Grease filter efficiency class B.

Sound level min. 44 dB / max. 66 dB normal mode.

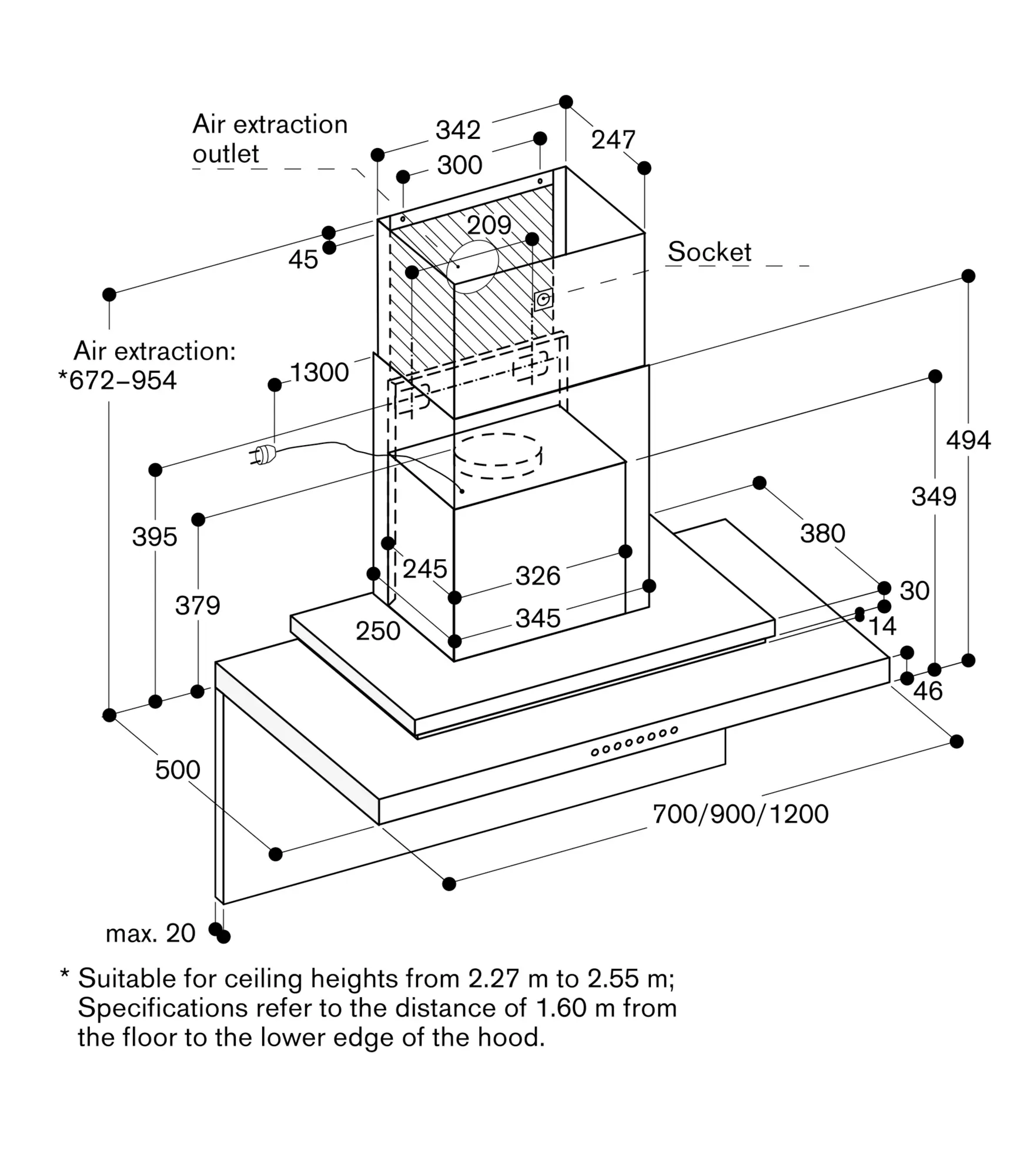

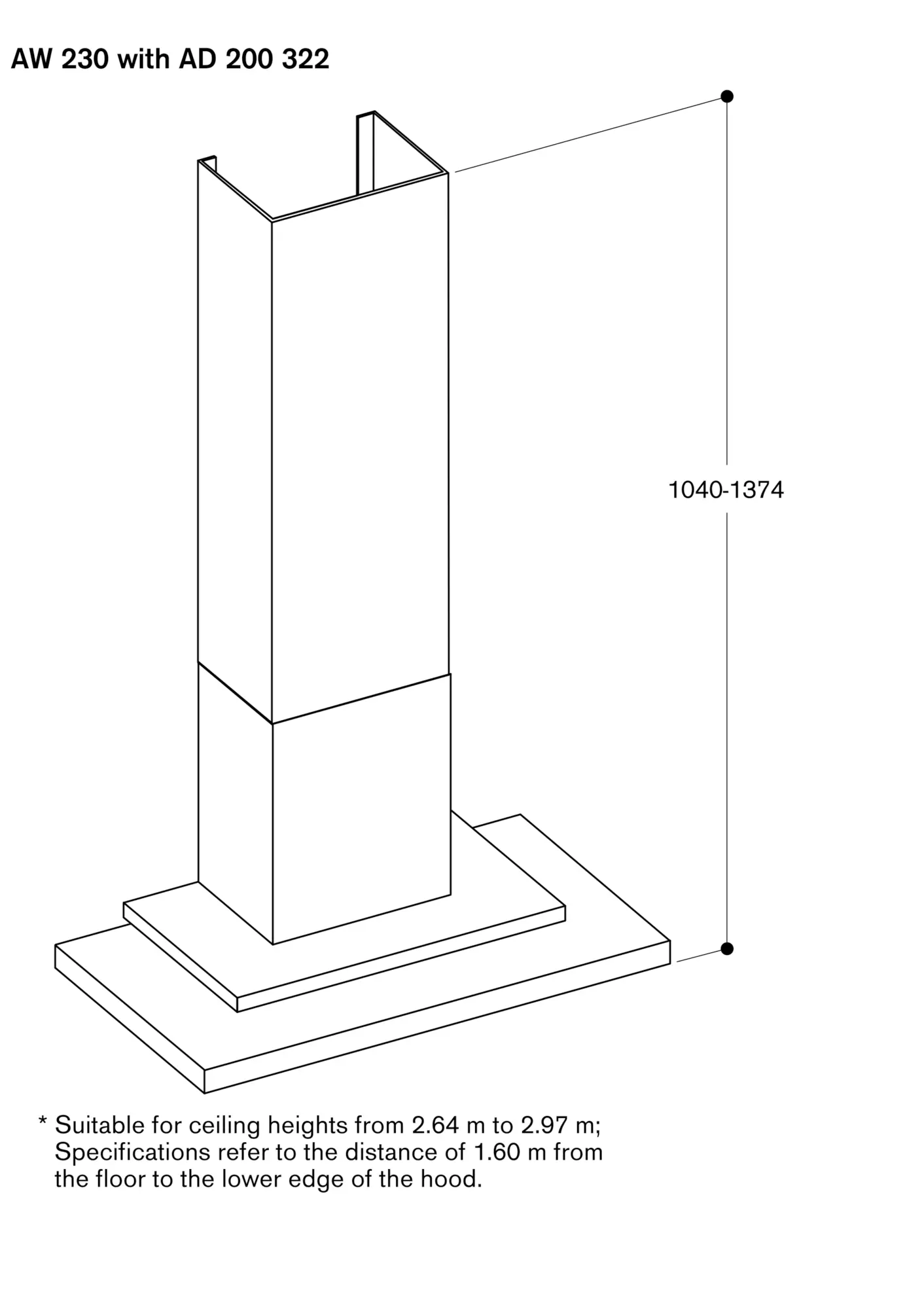

The package includes the two-part chimney with the dimensions from 582 mm to 864 mm. Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 55 cm.

The air recirculation module with activated charcoal filter can be installed on the external chimney or inner chimney.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
