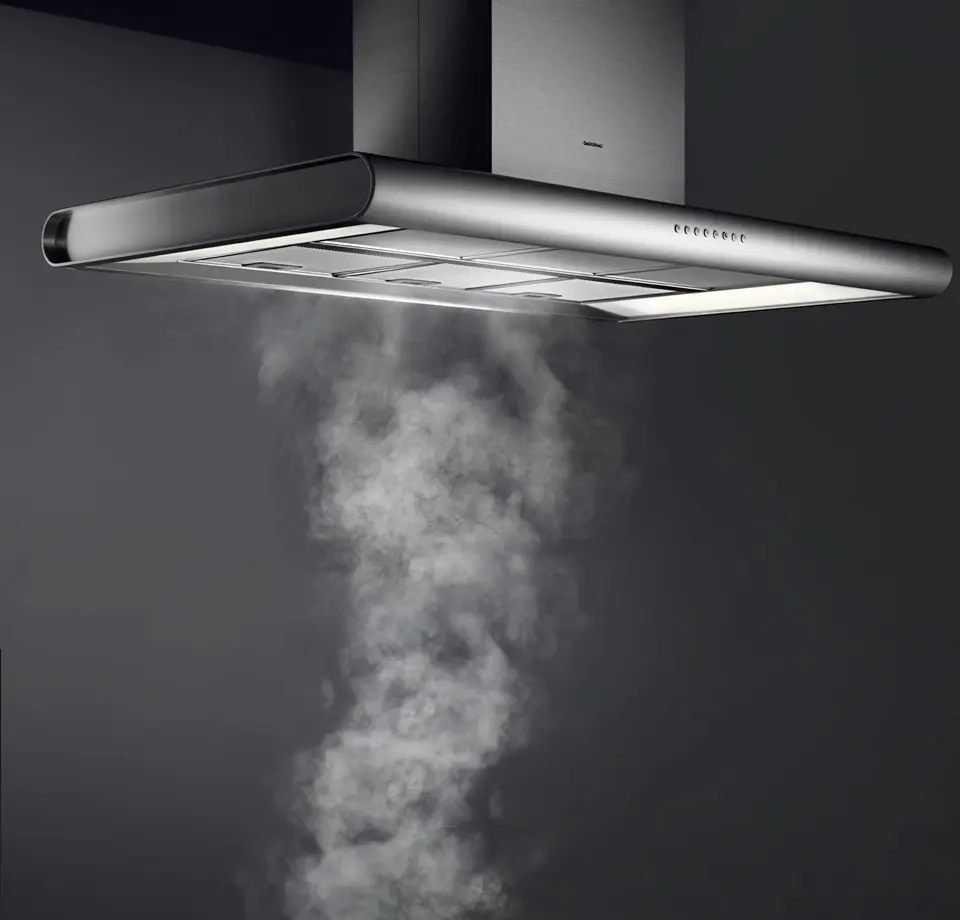

Coanda effect on both sides leads to highly efficient extraction, even on lowest power level

Air extraction or air recirculation system

Dimmable Soft-Light

Operation from both sides

Performance and noise level, output level 3/Intensive: Air output according to EN 61591. Sound power level according to EN 60704-3. Sound pressure level according to EN 60704-2-13. Odour reduction for air recirculation in accordance with EN 61591.

Air extraction: 500 / 690 m³/h + Coanda effect 120 / 120 m³/h. 62 / 70 dB (A) re 1 pW. 48 / 56 dB (A) re 20 μPa.

Air recirculation: 270 / 310 m³/h + Coanda effect 80 / 80 m³/h. 68 / 75 dB (A) re 1 pW. 53 / 61 dB (A) re 20 μPa.

Control panel in the front and the rear.

3 electronically controlled power levels.

Intensive mode with ongoing Coanda effect.

Interval ventilation, 5 min.

Run-on function, 10 min.

Grease filter saturation indicator.

Cartridge-type filter, dishwasher-safe.

Lighting colour 4000 K.

Fully illuminated surface with compact fluorescent tube 2 x 36 W and dimmable Soft-Light.

Illuminance 953 lx.

Energy efficiency class D.

Energy consumption 170.3 kWh/year.

Ventilation efficiency class D.

Ilumination efficiency class D.

Grease filter efficiency class A.

Sound level min. 47 dB / max. 62 dB normal mode.

For calculating the exhaust air line go to Rodun online at www.gaggenau.com.

For maximum exhaust air line use Gaggenau flat duct system AD 8… or Naber-System Compair flow. Other flat ducts are not permitted!

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Vario cooktops with intensive production of vapours like VR/VP should be placed in the middle beneath the hood (in this case air recirculation is not recommended).

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 55 cm.

Side outlet no lower than 58 cm from the bottom edge of the hood (middle of pipe).

Fit the socket concealed behind ventilation duct.

Recommendation for stainless steel parts positioned nearby that have to be welded and polished: brushed grain 280.

Surfaces: Stainless steel 1.4016, ground and brushed IIIC.

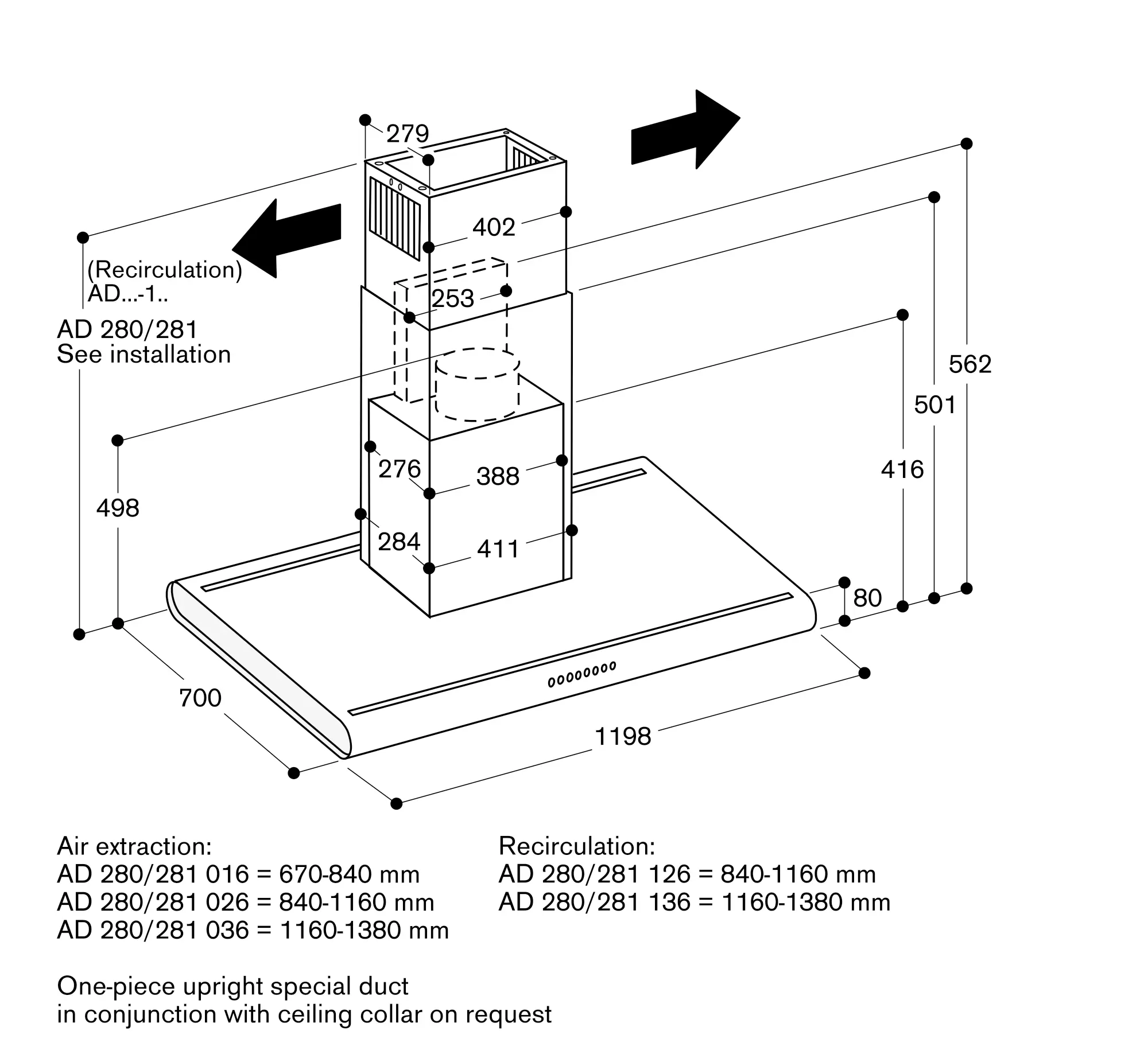

The dimensions of the air ducts refer to a distance of 1.60 m from the floor to the bottom edge of the hood. Convert for other installation heights: Worktop height + minimum clearance + hood with duct.
