Technical Overview
455x590x535 mm
no
AddedSteam
without plug (electrical connection by electrician), fixed connection
No
Specifications
Handleless door / automatic door opening
Fixed inlet and outlet water connection
Hot air 30 °C to 230 °C can be combined with chosen humidity level of 0%, 30%, 60%, 80% or 100%
Full surface grill behind glass ceramic for easy cleaning, combinable with circulated air up to 230 °C and steam
TFT touch display
Panel-free appliance with surface control module
Steaming without pressure
Electronic temperature control from 30 °C to 230 °C
Core temperature probe, removable
Net volume 43 litres
Energy efficiency class A
Hot air + 100 % humidity. Hot air + 80 % humidity. Hot air + 60 % humidity. Hot air + 30 % humidity. Hot air + 0 % humidity. Full surface grill + circulated air. Full surface grill. Full surface grill level 1 + humidity. Full surface grill level 2 + humidity. Dough proofing. Defrosting. Regenerating. Low temperature cooking.
Automatic door opening.
Rotary knob and TFT touch display operation.
Clear text display in 25 languages.
Option to save individual recipes (incl. core temperature probe).
Information key with use indicators.
Side-opening door opens up to 180° angle.
Full surface grill 2000 W behind glass ceramic.
Steam removal.
Misting.
Core temperature probe with automatic shut-off.
Actual temperature display.
Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer.
Electronic boiling point detection.
Capacity display for filter cartridge (if connected to GF 111 100 descaling system).
48 W halogen light on the side.
Hygienic stainless steel cooking interior.
4 tray levels.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Cleaning aid.
Drying program.
Descaling aid.
Grease filter, dishwasher-safe.
Door hinge not reversible.
No other electrical appliances should be installed above the BS.

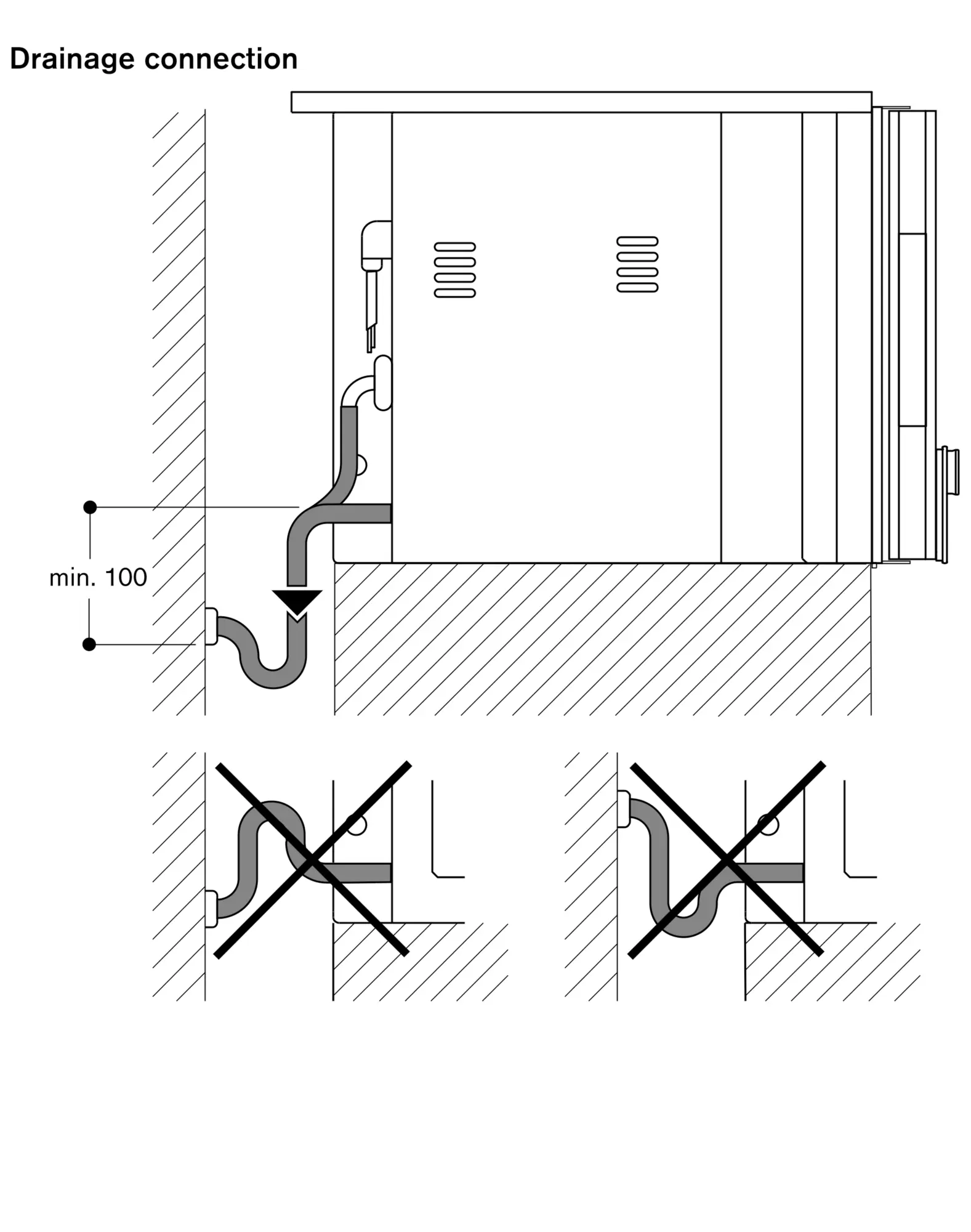

At no point may the outlet hose be positioned higher than the bottom edge of the appliance. The outlet hose must also be at least 100 mm lower than the appliance outlet (see drawing "drainage connection").
The outlet hose must not be longer than a maximum of 5 m.

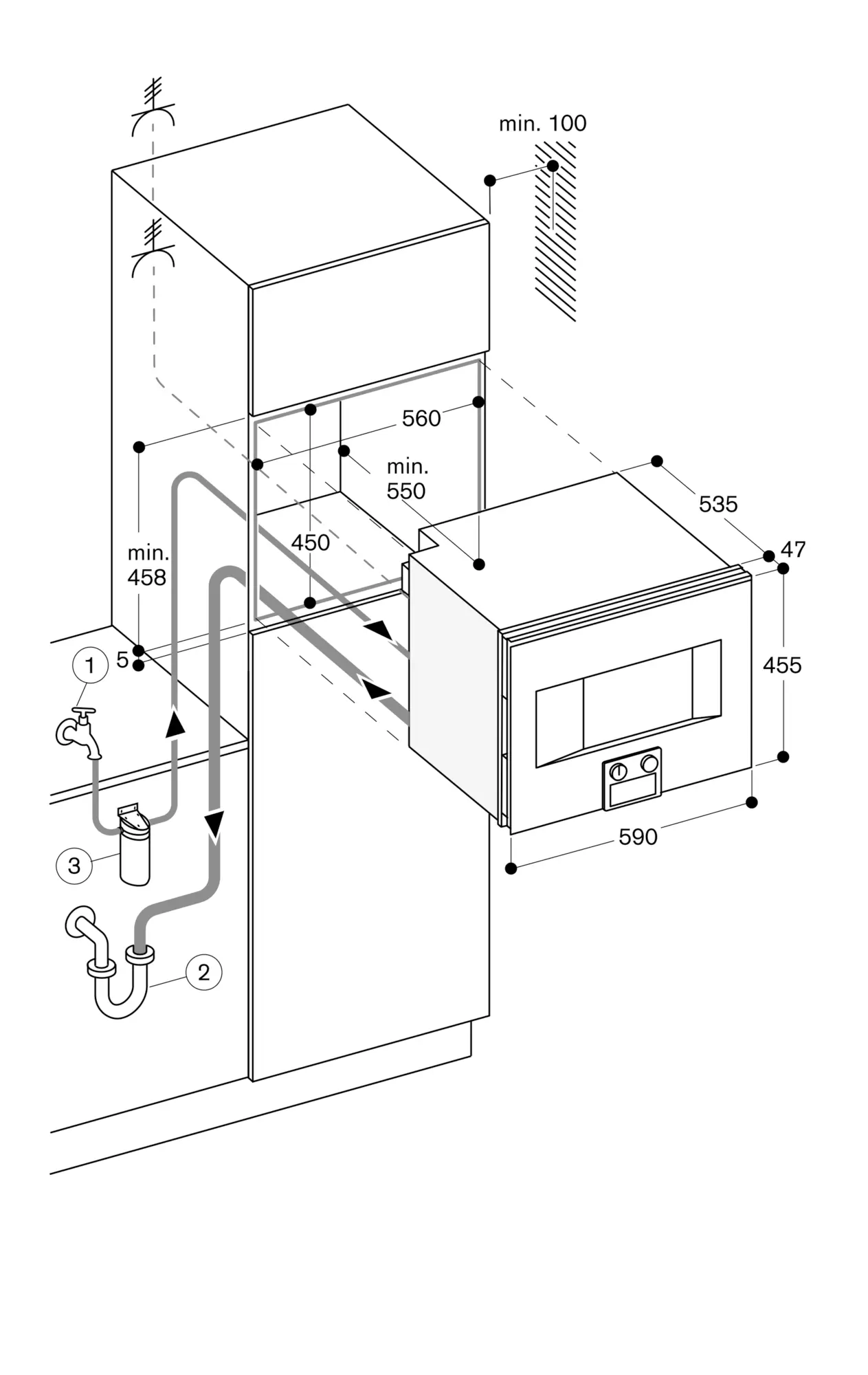

The water connection (1) for the inlet hose must always be accessible and not located directly behind the appliance.
The connection of the outlet hose to the siphon (2) must not be directly behind the appliance and should be accessible.
The descaling system GF 111 100 (3) must be installed when connecting the appliance if the water hardness exceeds 7° dH.
The door panel surface of the appliance extends 47 mm from the furniture cavity.
If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 94 mm from the furniture cavity.
Consider the overhang when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 90° door opening angle.
To achieve the 550 mm installation depth, the water hoses and connection cable needs to follow the slanted edge on the corner of the housing.
The mains socket needs to be planned outside of the built-in niche.
Total connected load 2.9 KW.
Only cold water connection.
Inlet hose 3.0 m with 3/4 " (26,4 mm) connection.
Outlet hose (ø 25 mm) 3.0 m (HT-Hose).
Plan a connection cable.
